Data Acquisition

Recording consists of running the actuator through a set of predefined trajectories while logging position, velocity, and control signals. The trajectories are played with different P-gain values and with each mass/length combination. The resulting data is then processed to a fixed timestep and stored in a structured format for later use in the identification pipeline.

Installation

First, you need to clone the BAM repository.

Then, install the extra dependencies for the identification pipeline using uv (installation instructions):

uv sync --extra identification

Trajectories

The trajectories are designed to excite different friction regimes. Each trajectory runs for 6 seconds.

Name	Description

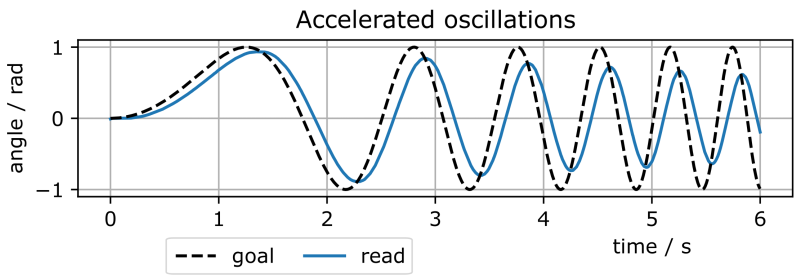

sin_time_square	\(\sin(t^2)\) profile — progressively faster oscillations, good general-purpose trajectory that covers a wide velocity range.

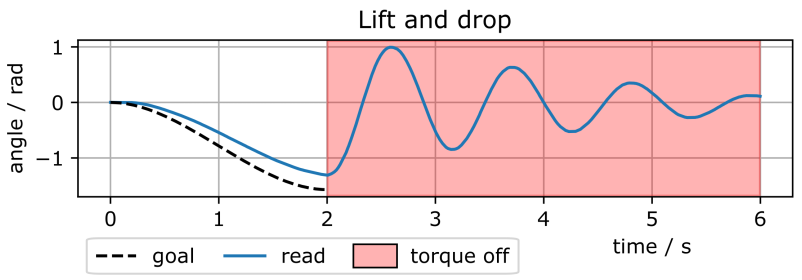

lift_and_drop	Cubic move to −π/2 over 2 s, then torque disabled — the arm falls under gravity. Particularly useful for identifying backdrivability and Stribeck effects at very low speed.

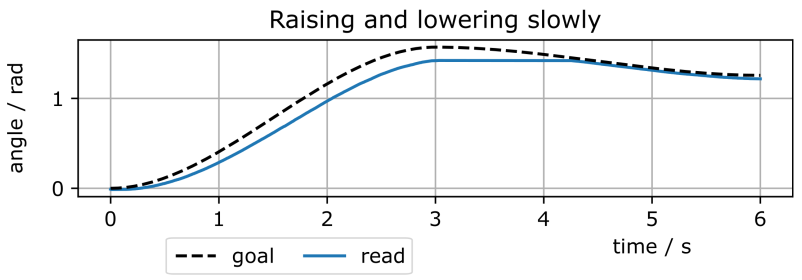

up_and_down	Cubic path 0 → π/2 → 0.8·π/2 — slower motion, emphasizes static friction and load-dependent effects.

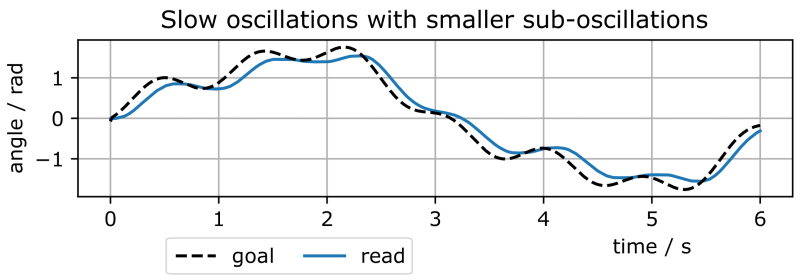

sin_sin	\(\sin(t)\cdot\pi/2 + \sin(5t)\cdot 0.5\cdot\sin(2t)\) — rich multi-frequency content.

Recording

BAM already ships with support for several actuators (the ones whose models are provided in the library), and is designed to be extended with new ones. Each manufacturer is implemented in its own package under bam/<manufacturer>/, exposing the same small interface. To record your own actuator, you therefore either:

• extend an existing manufacturer package if your motor’s brand is already supported — simply add your actuator class (for example a new Dynamixel model in bam/dynamixel/); or

• create a new bam/<manufacturer>/ package if your manufacturer is not supported yet.

Each manufacturer package is made of three modules:

• actuator.py — the only hardware-specific part. It handles the communication with the motor: reading position, speed and load, and sending position or current commands. Your actuator class subclasses the base classes provided in bam.actuator.

• record.py — plays the trajectories on the motor and logs the resulting data to JSON. It adapts the generic trajectories to the motor when needed (for instance, scaling the velocity to stay within the actuator’s limits).

• all_record.py — a convenience script that runs a full recording session for a given mass/arm configuration, automatically sweeping over all the P-gain values.

When writing your own package, the existing bam/dynamixel/ implementation is a good reference to draw inspiration from.

Once these modules are written, recording should be done using the following command:

uv run python -m bam.<manufacturer>.all_record \
    --port /dev/ttyUSB0 \
    --motor motor_name \
    --mass 0.5 \
    --arm-mass 0.02 \
    --length 0.15 \
    --vin 7.5 \
    --logdir data_raw

with each length/mass combination. Don’t forget to update the mass, length, and arm mass parameters for each recording.

Warning

The P-gain values used in the <manufacturer>/record.py file are manufacturer-specific and must be adapted to your motor based on the manufacturer’s specifications: a gain that is meaningful for one firmware may be far too high or too low for another.

To determine the appropriate P-gain values for your actuator, you can take the default P-gain value kp given by the manufacturer and test [kp/6, kp/4, kp/2, kp].

Raw data format

Each recording produces one JSON file:

{
  "mass": 0.5,
  "arm_mass": 0.02,
  "length": 0.15,
  "kp": 50,
  "vin": 7.5,
  "motor": "motor_name",
  "trajectory": "sin_time_square",
  "entries": [
    {
      "timestamp": 0.0077,
      "position": 0.0015,
      "speed": 0.024,
      "load": 0.0,
      "input_volts": 7.5,
      "goal_position": 0.0,
      "torque_enable": true
    },
    ...
  ]
}

Entries are logged at the firmware’s native rate, which is not necessarily constant. The processing step resamples them to a fixed timestep.

Processing

Resample raw logs to a constant timestep before fitting:

uv run python -m bam.process \
    --raw data_raw \
    --logdir data_processed \
    --dt 0.005

--dt is the target timestep in seconds. The script linearly interpolates between consecutive entries and writes one processed JSON per raw file into data_processed/.

Example: Dynamixel XL-330

The Dynamixel XL-330 is supported through the bam/dynamixel/ package. The physical test bench used for this motor is shown in Hardware Setup.

To record a full session for a 0.567 kg weight at the tip of a 0.17 m arm weighing 0.016 kg, the following command is used:

uv run python -m bam.dynamixel.all_record \
    --port /dev/ttyUSB0 \
    --motor xl330 \
    --mass 0.567 \
    --arm-mass 0.016 \
    --length 0.17 \
    --vin 7.5 \
    --logdir data_raw

For the XL-330, all_record automatically sweeps the five P-gain values [50, 100, 200, 300, 400] over the four trajectories, producing 20 recordings in data_raw/. By repeating the command for each mass/length combination presented in Hardware Setup, a complete dataset of 240 6s recordings is obtained.

The video below shows the four trajectories being played on the XL-330 for a single P-gain value:

Once all sessions are recorded, the raw data are then processed into a fixed timestep as shown above.
